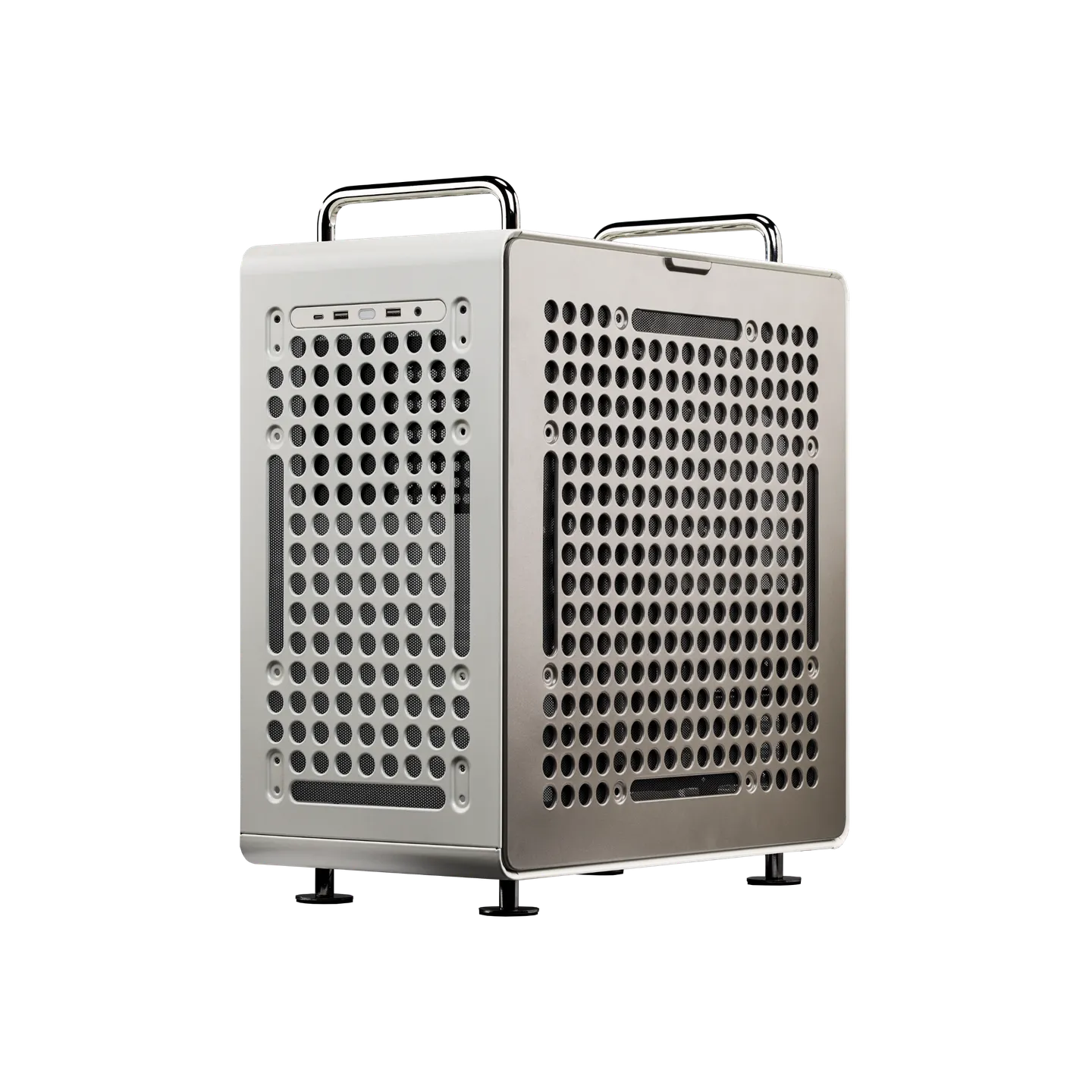

QUBE 540

Designed for creators, gamers, and DIY builders.

Model Number Stardust Iron: Q540-MGNN-S00

Model Number Moonstone: Q540-LGNN-S00

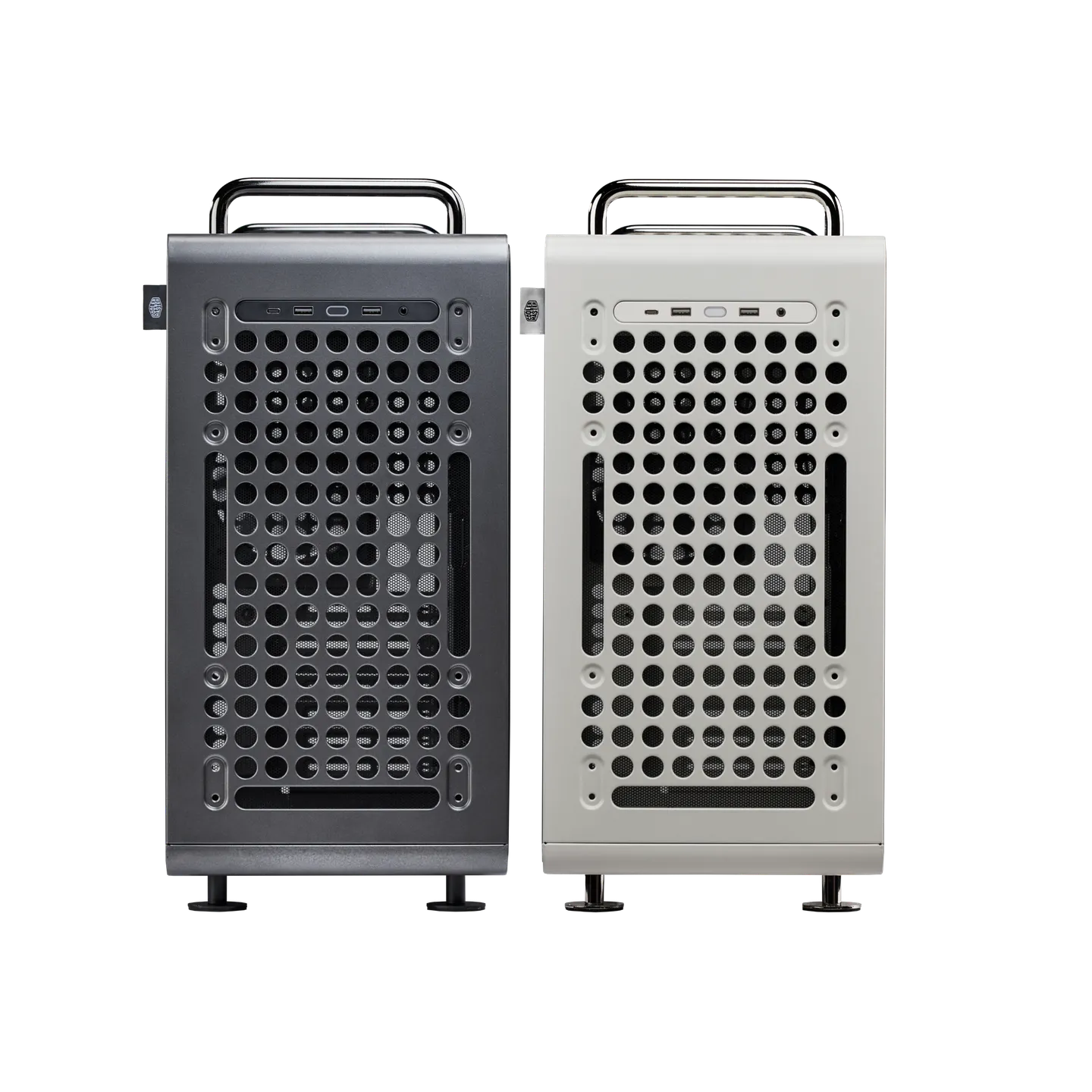

Color(s)Stardust Iron / Moonstone

Materials - ExteriorSteel

Material - Side Panel (Right)Steel

Material - Side Panel (Left)TG

Dimensions (L x W x H)Incl. Protrusions: 438.5 x 225 x 492.1 mm

Dimensions (L x W x H)Excl. Protrusions: 425 x 225 x 425 mm

Volume (w/o protrusions)40.64 L

Volume (with panel, protrusions and feet)48.55 L

Motherboard SupportITX / M-ATX / ATX / *E-ATX (*Up to 280 mm)

Expansion Slots7

Drive Bays - 5.25" ODDN/A

Drive Bays - 3.5" HDD1 (Shared 3.5" and 2.5" mounting on PSU bracket)

Drive Bays - 2.5" SSD2 (Max. 5)

I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C

I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack

Fan Support - Front3 x 120 mm (w/o I/O panel) / 2 x 140 mm

Fan Support - Top3 x 120 mm (w/o I/O panel) / 2 x 140 mm

Fan Support - Rear1x 120mm

Fan Support - Bottom3 x 120 mm / 2 x 140 mm

Preinstalled Fan(s) - FrontN/A

Preinstalled Fan(s) - TopN/A

Pre-installed Fans - Rear1x 120mm Black Fan

Radiator Support - Front140 / 280 / 360 mm (w/o I/O panel)

Radiator Support - Top140 / 280 / 360 mm (w/o I/O panel)

Radiator Support - Rear120 mm

Radiator Support - Bottom140 / 280 / 360mm (w/o I/O panel)

Clearances - CPU Cooler172 mm

Clearances - Power Supply200 mm

Clearances - Graphics Card415 mm (w/o Front Fan)

Cable Routing - Behind Motherboard Tray27 mm

Dust FiltersTop / Bottom / Front

Power Supply SupportATX / SFX

Warranty2 years

Note-

SeriesQUBE Series

SizeMid Tower

Qube Series
